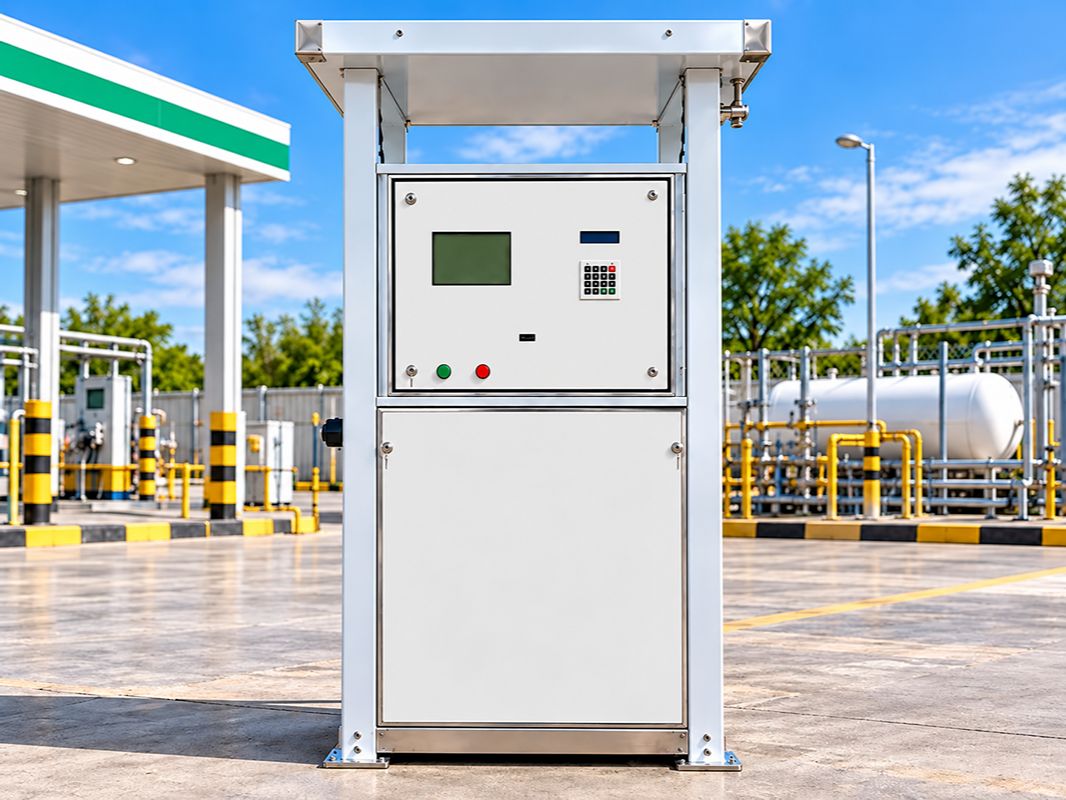

CNG Dispenser – High Performance CNG Dispensing System
A CNG Dispenser is a critical component of any compressed natural gas (CNG) fueling station. It safely and accurately delivers CNG to vehicles at pressures up to 200 kg/cm². Our dispensers are built with advanced Coriolis mass flow metering technology, ensuring precise measurement and fair billing for every refueling transaction.
Whether you operate a retail CNG station, a fleet refueling facility, or a mobile CNG unit, our dispensers deliver reliable performance, safety, and full compliance with Indian standards including PESO and W&M approvals.
- Coriolis Mass Flow Metering (W&M Approved)
- High Flow Rate – Up to 75 kg/min
- PESO & Hazardous Area Compliant
Key Specifications
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Dispenser Configuration | Dual Hose / Combo (Car + Bus) |
| Number of Lines | 1 Line (standard); 2 or 3 optional |
| Flow Rate (Max / Nom / Min) | 75 / 40 / 10 kg/min |
| Working Pressure | 200 kg/cm² (g) |
| Inlet Pressure | 250 kg/cm² (g) |
| Metering | Coriolis Mass Flow with W&M Approval |
| Temperature Range | -20°C to +70°C |
| Tube Pressure Rating | 6000 psi |
| Fill Hose Type | Twin (Fill & Vent), 1/2" ID |
| Breakaway Coupling | Yes, 1/2" size |
| Vent Return Coupling | Yes, 1/4" size |
| Solenoid Valve | Yes (Flameproof) |
| Emergency Shutdown (ESD) | Yes (Both sides) |
| Hose Retractor | Yes |
| Captured Vent | Yes |
| Temperature Compensation | Yes (Selectable) |
| Hazardous Area Classification | Class I, Zone 1, Gas Group IIA/IIB |
| Installation | Outdoor |
Key Features
- Coriolis Mass Flow Metering – High-precision measurement with W&M (Weights & Measures) approval for accurate billing.
- High Flow Rate – Delivers up to 75 kg/min, reducing refueling time for buses and commercial vehicles.
- Advanced Safety System – Includes pressure relief valve, breakaway coupling, solenoid valve, and emergency shutdown (ESD) on both sides.
- Temperature Compensation – Automatically adjusts fill pressure based on ambient temperature to prevent overfilling.
- Stainless Steel 304 Frame – Corrosion-resistant and durable construction for long service life.
- Twin Hose Design – Separate fill and vent hoses with captured vent for safe gas recovery.
- Explosion-Proof Design – All electrical components housed in flameproof enclosures compliant with Zone 1 hazardous area standards.
- Data Recorder & POS Compatible – In-built transaction recorder with RS 485 communication for POS integration.
- Easy Maintenance – Modular design allows quick access to valves and electronics without dismantling piping.
How Does a CNG Dispenser Work?
A CNG dispenser operates on a three-stage cascade filling principle to maximize gas utilization and minimize compression costs:
- Stage 1 – Low Pressure: Gas flows from the low-pressure storage bank first, rapidly filling the vehicle tank.
- Stage 2 – Medium Pressure: As vehicle pressure rises, the system automatically switches to the medium-pressure bank.
- Stage 3 – High Pressure: Final top-up from the high-pressure bank until the vehicle tank reaches the required 200 kg/cm² pressure.
The Coriolis mass flow meter continuously measures the exact mass of gas dispensed, ensuring accurate billing. Temperature compensation adjusts for ambient conditions to prevent overfilling.
Where Our CNG Dispensers Are Used
Frequently Asked Questions
What is the price of a CNG dispenser in India?
Price depends on configuration (single/dual hose), flow rate, number of lines, and certifications. Contact Rutvi Enterprises for a customized quote based on your station requirements.
What certifications should a CNG dispenser have?
A reliable CNG dispenser must have PESO approval, W&M (Weights & Measures) certification for the mass flow meter, and compliance with hazardous area standards (Zone 1, Gas Group IIA/IIB).
What is the flow rate of a standard CNG dispenser?
Standard CNG dispensers deliver 10–40 kg/min. High-flow models for bus and fleet applications can deliver up to 75 kg/min or more.
Do you provide installation and after-sales support?
Yes. Rutvi Enterprises provides installation support, spare parts, and maintenance services across India. Our team assists with commissioning and ongoing technical support.
Is the CNG dispenser compatible with POS systems?
Yes. Our dispensers come with RS 485 / RS 232 communication ports for integration with point-of-sale (POS) systems and automation platforms.
Get a Quote for Your CNG Dispenser
Contact Rutvi Enterprises for customized CNG dispensing solutions, pricing, and technical support.
